Mitsubishi Electric to Ship Samples of NX-type 1.2kV IGBT Module for Industrial Use

Mitsubishi Electric Corporation (TOKYO: 6503) announced that it will begin shipping samples of ten new models of its industrial-use NX-type 1.2kV insulated gate bipolar transistor (IGBT) module on a sequential basis starting June 15. Designed for use in inverters that control machine tools, industrial robots and large-capacity motor drive systems,¹ the modules are equipped with the latest eighth-generation IGBTs. Compared to existing IGBT modules,² the modules reduce power loss by up to approximately 19%, thereby decreasing power consumption in industrial equipment.

Mitsubishi Electric will exhibit the NX-type 1.2kV IGBT module for industrial use at Power Conversion Intelligent Motion (PCIM) Expo & Conference 2026 in Nuremberg, Germany from June 9 to 11, as well as upcoming exhibitions in Japan, China and other countries.

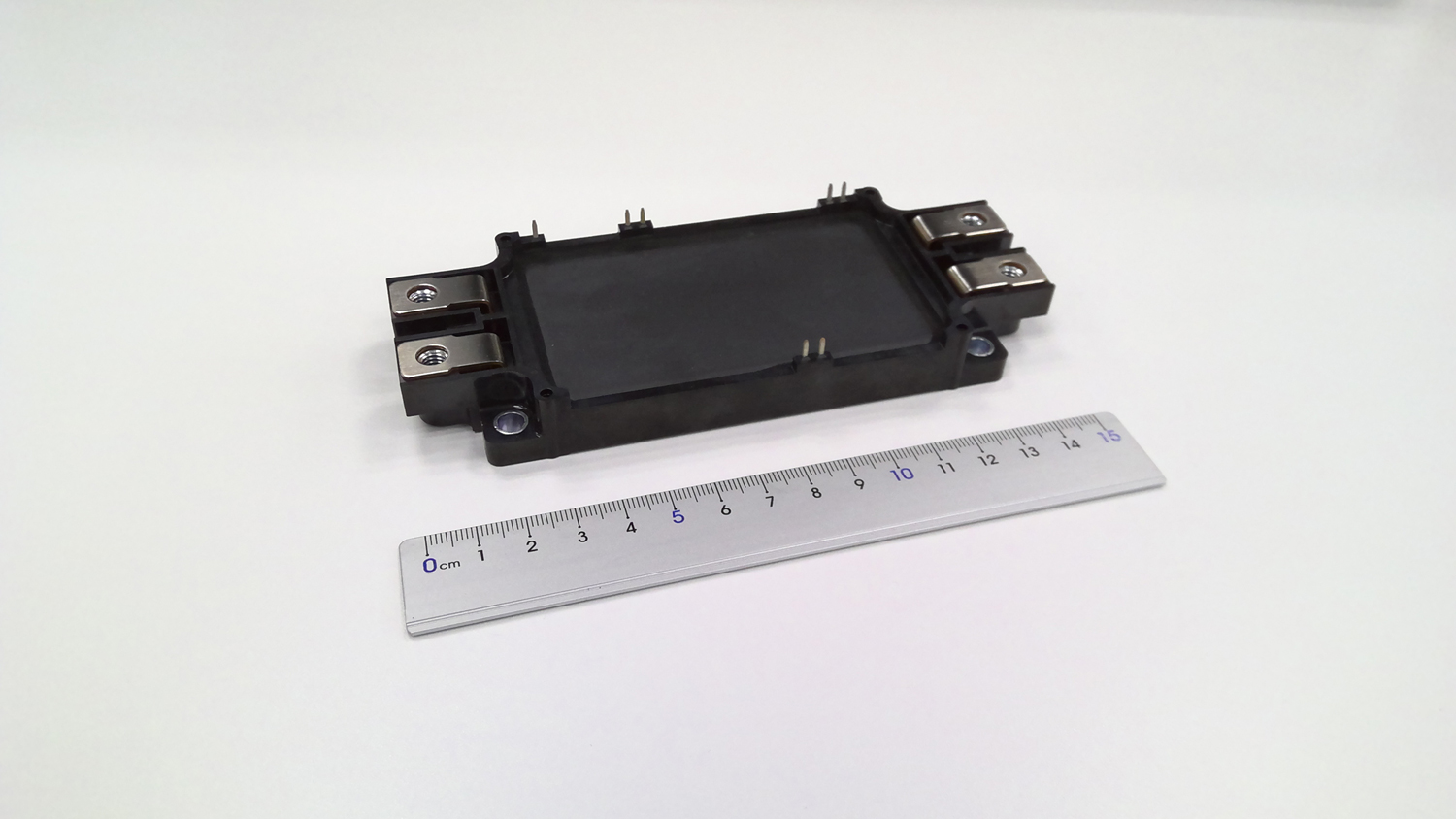

By optimizing the IGBT and diode layout, Mitsubishi Electric was able to add a new 1000A-rated model with a rating 1.25 times ³ that of current models, but within the same package size, realizing higher inverter output. The continued use of the Industrial NX-type package ensures the easy replacement of existing modules and helps shorten the development period for new inverters.

• ¹Inverter systems consisting of inverter and converter circuits that efficiently control the rotation speed and power supply capacity of motors in factory machine tools, cranes and other industrial equipment.


• ²Comparison to existing CM800DX-24T1 equipped with 7th-generation IGBT. Calculated based on Mitsubishi Electric’s simulation results under the following conditions: 2-level, Vcc = 600 V, Io = 350 Arms, M=1, PF=1, Fc=2kHz, fo=50Hz.


• ³Comparison with the conventional CM800DX-24T1.
