Nikon Introduces the Binocular Telescope 20x120 IV/25x120

Nikon Vision Co., Ltd., (Nikon Vision), a subsidiary of Nikon Corporation (Nikon), is pleased to announce the release of Binocular Telescope 20x120 IV, 25x120 and dedicated pillar stand with adapter.

Both Binocular Telescope 20x and 25x models realise a brighter, high-resolution image with a large 120-mm objective diameter. The Binocular Telescope 20x120 IV employs a superior optical system that achieves a sharp image with various aberrations effectively compensated. The Binocular Telescope 25x120 enables high-power and dynamic observation with superior image flatness while realising a wide field of view (64.7° apparent field of view).

The binocular body is an airtight and waterproof structure which prevents rain and night dew entering. Also, it is filled with nitrogen gas to keep the binoculars fog-free inside. High corrosion-proofing and shake-resistance features maintain performance over an extended life.

Attaching to the optional Binocular Telescope Pillar Stand w/Adapter enables stabler, and easier observation. These are large binoculars that can be used in a wide range of applications from professional to leisure observation, such as fishing, sailing, astronomical observation and surveillance purposes.

Key Features

• Large 120mm objective diameter realises a brighter, high-resolution image
• The Binocular Telescope 20x120 IV with a superior optical system achieves a sharp image with various aberrations effectively compensated
• The Binocular Telescope 25x120 enables high-power and dynamic observation with superior image flatness while realising a wide field of view (64.7° apparent field of view)
• Long eye relief design ensures a clear field of view. Horn-shaped rubber eyecups are employed for easier viewing.
• Airtight waterproof structure prevents rain and night dew entering. Fogproof construction filled with nitrogen gas keeps the binoculars fog-free inside. High corrosion-proofing and shake-resistance features maintain performance over an extended life.
• Equipped with a solid fork mount, easy handling is achieved with 360° horizontal rotation and -30° (downward) to +70° (upward) tilting

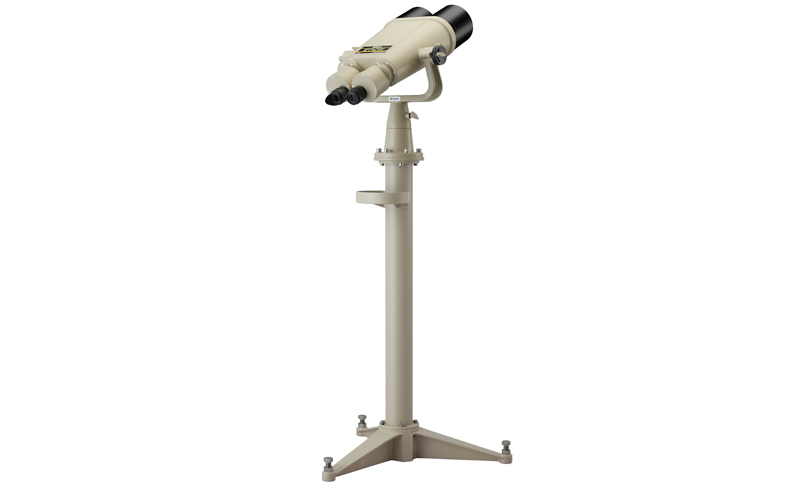

• Using a durable pillar stand w/adapter (optional) enables stabler, easier observation

Specifications

20x120 IV
Magnification (x): 20
Objective diameter (mm)|: 120
Angular field of view (real) (°): 3.0
Angular field of view (apparent) (°): *1: 55.3
Field of view at 1,000 m/yd. (m/ft): 52/156
Exit pupil (mm): 6.0
Relative brightness: 36.0
Eye relief (mm): 20.8
Close focusing distance (m/ft): 133/436.4
Length (mm/in.)*2: 680/26.8
Width (mm/in.)*2: 454/17.9
Height (mm/in.)*2: 160/6.3
Weight (kg/oz.)*2: 14/493.8
Interpupillary distance adjustment (mm/in.) :58-74/2.3-2.9
Diopter adjustment (m-1): -5 - +3

Structure: Waterproof (up to 2m/6.6 ft for 10 minutes)*3 and nitrogen gas filled

25x120
Magnification (x): 25
Objective diameter (mm): 120
Angular field of view (real) (°):2.9
Angular field of view (apparent) (°) *1: 64.7
Field of view at 1,000 m/yd. (m/ft)     50/150
Exit pupil (mm): 4.8
Relative brightness: 23.0
Eye relief (mm): 18.9
Close focusing distance (m/ft): 210/689.0
Length (mm/in.)*2: 672/26.5
Width (mm/in.)*2: 454/17.9
Height (mm/in.)*2: 160/6.3
Weight (kg/oz.)*2: /493.8
Interpupillary distance adjustment (mm/in.): 58-74/2.3-2.9
Diopter adjustment (m-1):-5 - +3

Structure: Waterproof (up to 2m/6.6 ft for 10 minutes)*3 and nitrogen gas filled

• *1Apparent field of view is calculated based on the ISO14132-1:2002 standard.
• *2Binoculars body only.
• *3Waterproof (up to 2m/6.6 ft for 10 minutes) but not for underwater usage.
