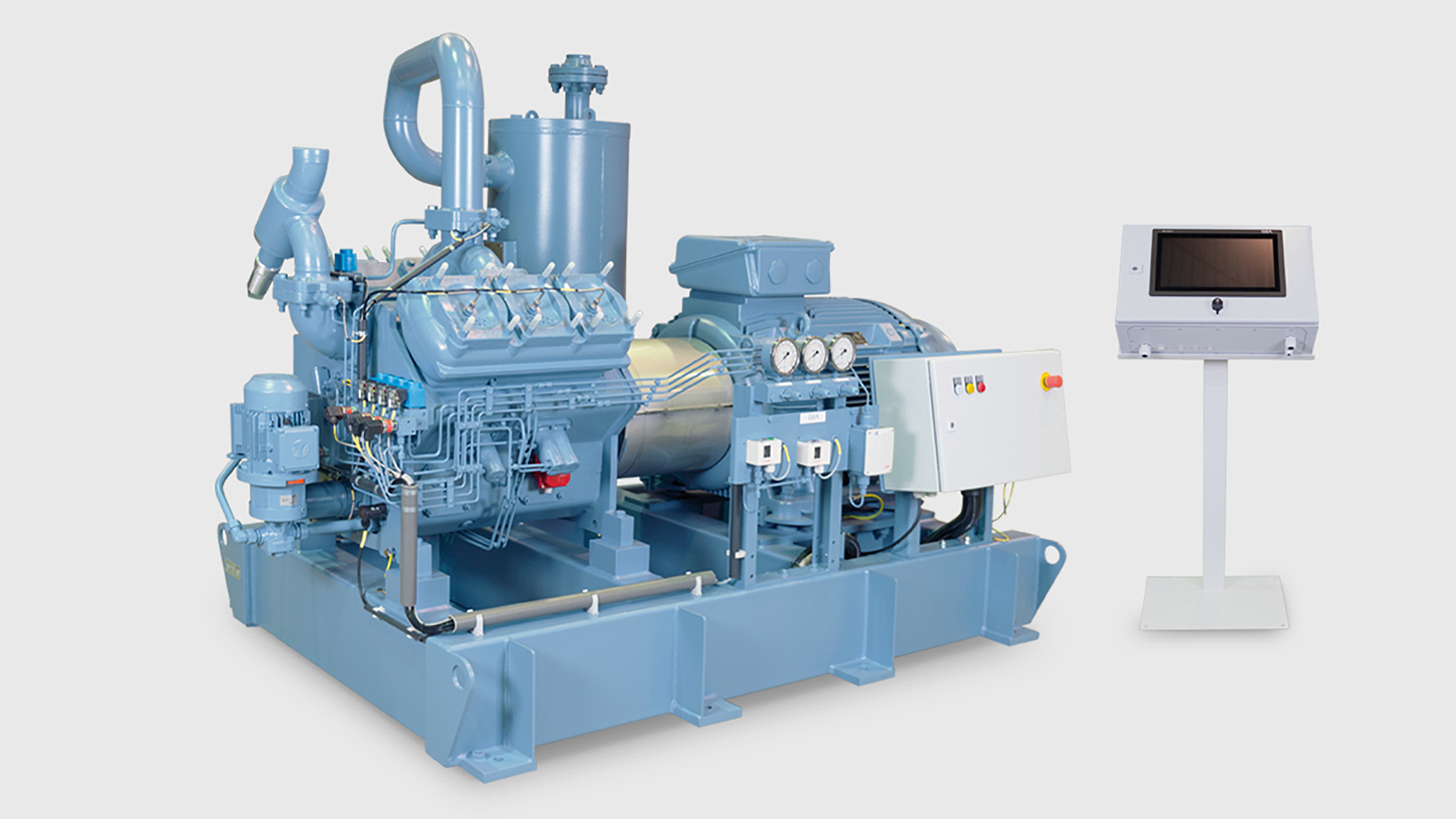

GEA Grasso V HP – New reciprocating compressor models for NH3 heat pump solutions

Continuing the success story of the GEA Grasso V series on a higher level, GEA developed the high-pressure version for heat pump applications. With a maximum design pressure of 39 bar, the V HP models are the right choice for hot water applications up to 70 °C.


This solution covers most of all heat pump applications in the food industry for processing and cleaning and already won this year’s RAC Cooling Industry Award in the category Building Energy Project. The new compressor models are based on the currently available GEA Grasso V design and cover a swept volume range from 290 to 580 m³/h at 1,500 rpm.

External oil pump guarantees continuous oil flow for maximum reliability

GEA Grasso V series stands for reduced total cost of ownership (TCO) thanks to less consumption and maximum reliability. This proven efficiency concept has now been designed for heat pump applications. An external oil pump of the GEA Grasso V HP models ensures pre-lubrication and a guaranteed continuous oil flow for maximum reliability in full and part load. The coefficient of performance (COP) is on the highest level and equates to lower operating costs.

Low maintenance costs

The selection of the highest quality parts and construction methods enables GEA to reduce the downtime and maintenance frequency for this machine significantly when compared to the traditional compressor maintenance guidelines. GEA Grasso V HP compressor can optionally be fitted with a so-called ‘conditional maintenance monitor’, which indicates the right time for maintenance.

An award-winning solution

The pilot plant installation has been such a tremendous success for the customer that it has won the RAC Cooling Industry Award 2018 in the category Building Energy Project. With 19 targeted categories, the awards cover every aspect of the refrigeration and air conditioning industry, from Retail Initiative to Cold Chain Innovation / Project. The building energy project of the year category seeks to recognize innovation as well as significant energy savings. The judges were unanimous in awarding GEA the top prize for its modification of a large ammonia-based refrigeration plant by adding a heat pump stage to heat process water for the washdown of the factory. The GEA Grasso V HP further compresses the NH3 discharge gas of the chiller stage to provide 1.5 MW capacity and a temperature rise of the process water from 10 °C to 67 °C. The statistics speak for themselves: the client was able to turn off two boilers altogether and reduced the gas consumption on the remaining two, in return on for a small increase in electrical power.

GEA at Chillventa in Nuremberg, Germany, Hall 7, Stand 502

About GEA

GEA is one of the largest suppliers for the food processing industry and a wide range of other industries that generated consolidated revenues of approximately EUR 4.6 billion in 2017. The international technology group focuses on process technology, components and sustainable energy solutions for sophisticated production processes in various end-user markets.

The group generates around 70 percent of its revenue in the food and beverages sector that enjoys long-term sustainable growth. As of December 31, 2017, the company employed almost 18,000 people worldwide. GEA is a market and technology leader in its business areas. The company is listed on the German MDAX (G1A, WKN 660 200). In addition, GEA’s stock is included in the MSCI Global Sustainability Indexes.
